Series
F9.110

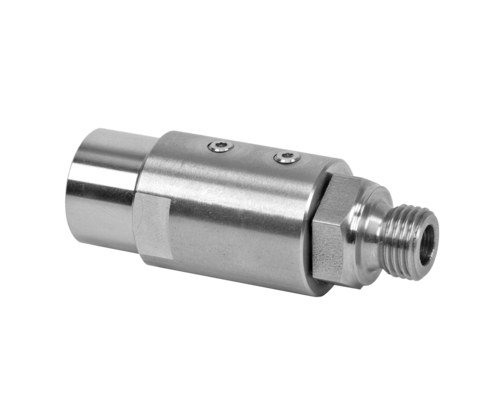

Axial Pipe Swivel Joints

made of stainless steel
max. operating pressure 80/100 bar
Axial Pipe Swivel Joints
Downloads
Catalogue sheet
USESFR
Operating instructions
Available on demand.
Information Series
Description
F 9.110 Axial Pipe Swivel Joints

Advantages

  • Direct piping possible
  • Material: stainless steel
  • Compact design
  • Large flow cross sections

Application
Connection of pressurised lines to compensate rotary and swivel movements.

  • Construction machines
  • Agricultural machines
  • Railway engineering
  • Offshore industry
  • Robotics
  • Special vehicles

and others

Materials
Stainless steel 1.4305
Seals made of FKM + PTFE

Operating temperature
– 20 °C to + 120 °C with oil
– 20 °C to + 80 °C with water

Error loading CAD data. Please check your internet connection and try again.
Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
