Series
B1.738

Block cylinders with guide housing

Articles and prices on request
max. operating pressure, extending 500 bar steel block cylinders,
350 bar aluminium block cylinders, retracting 350 bar all versions
Block cylinders with guide housing
Downloads
Catalogue sheet
USESFR
Operating instructions
Information Series
Description
B 1.738 Block cylinders with guide housing

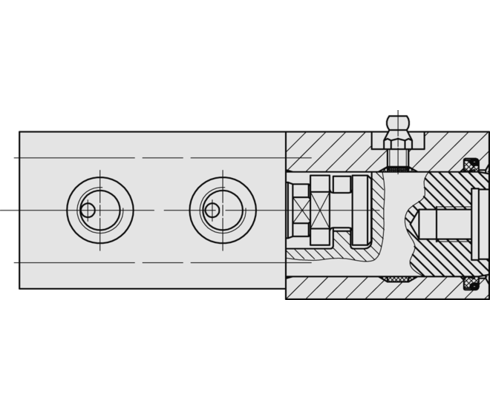

The hardened clamping bolt is located in a guide housing, and is connected to the flange-mounted block-cylinder by means of a coupling.

The following variants are available:

  • Block cylinder as per data sheet B1.5094 without position monitoring
  • Block cylinder as per data sheet B 1.552 with extended piston rod for position monitoring with inductive proximity switches
  • Block cylinder as per data sheet B 1.554 with magnetic piston and aluminium housing for position monitoring with magnetic sensors
Accessories (22)
Article available on request
On request, we will check whether the article is still available
Item no. CAD data Description
Item no.
0382300
CAD data
Description
Position monitoring type A, standard with 2 proximity switches for block cylinders up to 30 mm stroke as per data sheet B1.552
Item no.
0382301
CAD data
Description
Position monitoring type B, compact with 2 proximity switches for block cylinders up to 30 mm stroke as per data sheet B1.552
Item no.
0382302
CAD data
Description
Position monitoring type C for high ambient temperature with 2 proximity switches for block cylinders up to 30 mm stroke as per data sheet B1.552
Item no.
0382303
CAD data
Description
Position monitoring without proximity switches for block cylinders up to 30 mm stroke as per data sheet B1.552
Item no.
0382310
CAD data
Description
Position monitoring type A, standard with 2 proximity switches for block cylinders up to 50 mm stroke as per data sheet B1.552
Item no.
0382311
CAD data
Description
Position monitoring type B, compact with 2 proximity switches for block cylinders up to 50 mm stroke as per data sheet B1.552
Item no.
0382312
CAD data
Description
Position monitoring type C for high ambient temperature with 2 proximity switches for block cylinders up to 50 mm stroke as per data sheet B1.552
Item no.
0382313
CAD data
Description
Position monitoring without proximity switches for block cylinders up to 50 mm stroke as per data sheet B1.552
Item no.
3300285
CAD data
Description
Drill bushing DIN 179 A 12 x 12 mm *as per data sheet B1.738
Item no.
3300287
CAD data
Description
Drill bushing DIN 179 A 17 x 16 mm as per data sheet B1.738
Error loading CAD data. Please check your internet connection and try again.
Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
