Block cylinders

Piston rod with exterior thread,
double acting, max. operating pressure 500 bar

Downloads

Catalogue sheet

US ES FR

Operating instructions

Information Series

Description

B 1.542 Block cylinders

Double-acting block cylinders can be used universally for all hydraulic-operated linear movements.

The double-acting functioning allows a high function safety as well as exactly calculable and repeatable stroke times.

Accessories (6)

Number

Item no.	CAD data	Description
Item no. 3000275	CAD data /	Description O-ring 8 x 1.5 mm, FKM as per data sheet B1.5091
Item no. 3000342	CAD data	Description O-ring 7 x 1.5 mm, NBR as per data sheet B1.5091
Item no. 3000343	CAD data	Description O-ring 8 x 1.5 mm, NBR as per data sheet B1.5091
Item no. 3000347	CAD data	Description O-ring 10 x 2 mm, NBR as per data sheet B1.5091
Item no. 3001077	CAD data	Description O-ring 7 x 1.5 mm, FKM as per data sheet B1.5091
Item no. 3001078	CAD data	Description O-ring 10 x 2 mm, FKM as per data sheet B1.5091

Application examples

Application example 1

Operating a slide in a deep-draw mould

If it is impossible to install a block cylinder directly due to force or space restrictions, the block cylinder with spherical bearing might be an alternative.

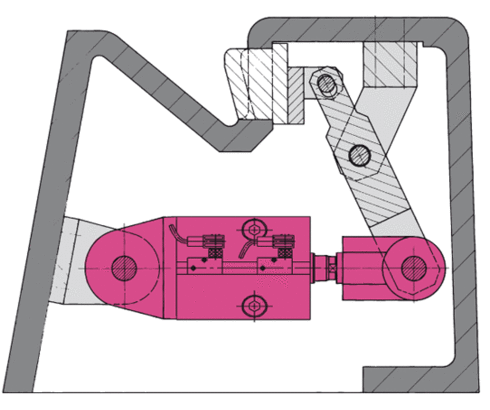

The figure shows the operation of a slide in a deep-draw mould for a container. The position monitoring supplies the required information about the position of the connecting part.
