Bore clamp
double acting, for bore hole diameter 7.8 - 17.7 mm
max. operating pressure 250 bar
The bore clamp is particularly suited for clamping of workpieces with smooth bore holes from diameter 7.8 to 17.7 mm in the support surface.
The bore clamp is a double-acting pull-type cylinder. An exchangeable clamping bushing is fixed to the piston.

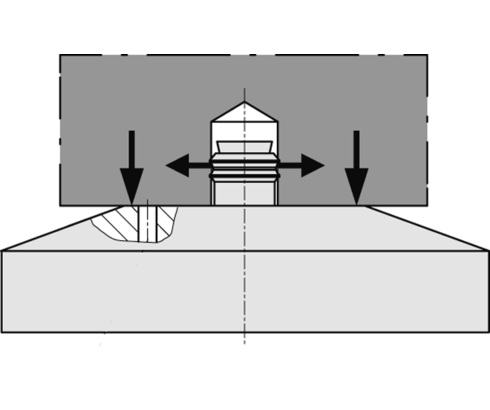

The 4 segments of the clamping bushing are radially expanded with spring force by a conic clamping bolt. Thus the expansion force is always the same and independent of the hydraulic clamping pressure. Both unclamping of the clamping bushing and pull-down clamping of the workpiece are controlled hydraulically.
Connecting the positive air pressure protection, the clamping bushing is protected against swarf and coolants. In the hardened support surface for the workpiece there is a bore hole for connection of a pneumatic seat check.
| Item no. | CAD data | Description |
|---|---|---|
|
Item no.
|
CAD data
|
Description
Sealing plug G1/8
with thread sealing ring
with hexagon socket SW4
max. 500 bar, as per data sheet F9.300
|
|
Item no.
|
CAD data
|
Description
Sealing plug G1/4
with thread sealing ring
with hexagon socket SW6
max. 500 bar, as per data sheet F9.300
|
|
Item no.
|
Description
Clamping set for bore clamps
size 2, Ø 11.3 - 11.7 mm
for bore clamp 4318-2X0F
as per data sheet B1.4841
|
|
|
Item no.
|
Description
Clamping set for bore clamps
size 2, Ø 11.8 - 12.7 mm
for bore clamp 4318-2X0G
as per data sheet B1.4841
|
|
|
Item no.
|
Description
Clamping set for bore clamps
size 2, Ø 12.8 - 13.7 mm
for bore clamp 4318-2X0H
as per data sheet B1.4841
|
|
|
Item no.
|
Description
Clamping set for bore clamps
size 2, Ø 13.8 - 14.7 mm
for bore clamp 4318-2X0K
as per data sheet B1.4841
|
|
|
Item no.
|
Description
Clamping set for bore clamps
size 2, Ø 14.8 - 15.7 mm
for bore clamp 4318-2X0L
as per data sheet B1.4841
|
|
|
Item no.
|
Description
Clamping set for bore clamps
size 2, Ø 15.8 - 16.7 mm
for bore clamp 4318-2X0M
as per data sheet B1.4841
|
|
|
Item no.
|
Description
Clamping set for bore clamps
size 2, Ø 16.8 - 17.7 mm
for bore clamp 4318-2X0N
as per data sheet B1.4841
|
|
|
Item no.
|
Description
Clamping set for bore clamps
size 1, Ø 7.8 - 8.2 mm
for bore clamp 4318-1X0A
as per data sheet B1.4841
|

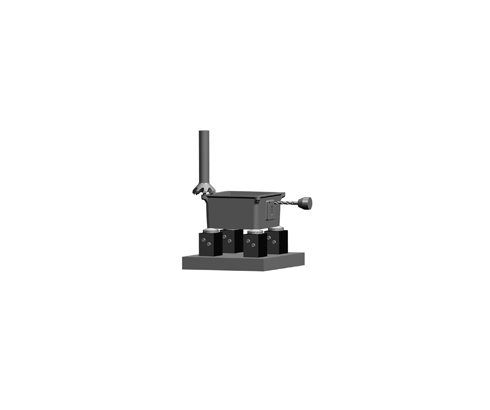

Machining of an oil sump from 5 sides
