Series
B1.282

Hydro-cylinders

with optional stroke end cushioning,
double acting, max. operating pressure 200 bar
Hydro-cylinders
Downloads
Catalogue sheet
Operating instructions
Information Series
Description
B1.282 Hydro-cylinder with optional stroke end cushioning

Double-acting hydro-cylinders with connecting dimensions according to DIN ISO 6020. Only exception is the shorter overall length. On request also available in the longer version as per DIN ISO 60 20. The piston rod is provided with an external thread. For fixing, the front and back part of the body is provided with 4 internal threads.
The adjustable stroke end cushioning avoids a too hard stop of the piston in the cylinder body with the following applications:

1. High piston speed

2. Additional load at the piston rod

3. If an external stop cannot be provided to compensate the additional load

Accessories (18)
Item no. CAD data Description
Item no.
CAD data
Description
Cylinder-flange for 1283-XXX and 1293-XXX 200 bar, as per data sheet B1.282
Item no.
CAD data
Description
Cylinder-flange for 1284-XXX and 1294-XXX 200 bar, as per data sheet B1.282
Item no.
CAD data
Description
Cylinder-flange for 1285-XXX and 1295-XXX 200 bar, as per data sheet B1.282
Item no.
CAD data
Description
Cylinder-flange for 1286-XXX and 1296-XXX 200 bar, as per data sheet B1.282
Item no.
CAD data
Description
Cylinder-flange for 1287-XXX and 1297-XXX 200 bar, as per data sheet B1.282
Item no.
CAD data
/
Description
Cylinder-flange for 1288-XXX and 1298-XXX 200 bar, as per data sheet B1.282
Item no.
CAD data
Description
Bearing block for 1293-1X-XXXX bearing Ø 12 H7 mm as per data sheet G3.810
Item no.
CAD data
Description
Bearing block for 1294-1X-XXXX bearing Ø 16 H7 mm as per data sheet G3.810
Item no.
CAD data
Description
Bearing block for 1295-1X-XXXX bearing Ø 20 H7 mm as per data sheet G3.810
Item no.
CAD data
Description
Bearing block for 1296-1X-XXXX bearing Ø 25 H7 mm as per data sheet G3.810
Loading…
Application examples
Application example 1

Injection mould

Cycle (portrayed in simplified terms)
1. Mould closed, injected
2. Toothed rack retracts, threaded spindle is moved out
3. Limit switch gives signal "open mould"
4. Mould opens
5. Workpiece will be ejected
6. Mould closes
7. Toothed rack extends, threaded spindle is moved in
8. Limit switch gives signal „Substance to be injected“
9. Substance is injected
1. New cycle

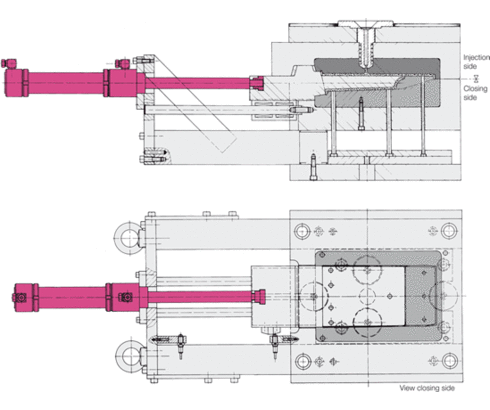

injection mould with hydro cylinder B1.282
injection mould with hydro cylinder B1.282
Application example 2

Injection mould

Cycle (portrayed in simplified terms)
1. Mould closed, injected
2. Mould opens
3. Hydraulic block cylinder pulls the core out of the mould
4. Limit switch gives signal "ejector system forward"
5. Ejector system forwards
6. Workpiece falls
7. Ejector system backwards
8. Limit switch gives signal "Insert core"
9. Hydraulic block cylinder pushes the core into the mould
10. Limit switch gives signal "close mould"
11. Mould closes
12. Substance is injected
1. New cycle
