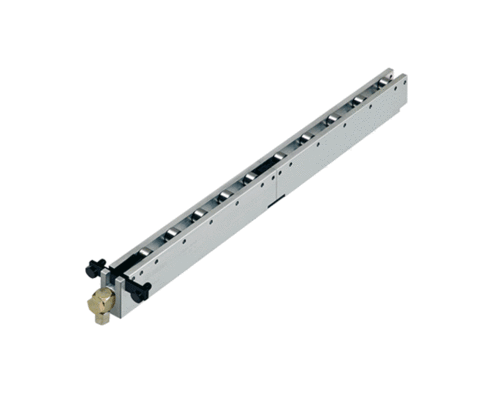

Roller Bars, Hydraulic

max. load 160 kN/m, max. operating pressure 400 bar

Roller bar with hydraulic lifting of the complete bar for heavy loads and linear movement of the dies.
On the underside of the roller bar, lifting pistons are provided. Pressure is applied to thesepistons using hydraulic pressure generators, which lift then the complete roller bar. The die positioned on the roller bars is not in contact with the table top and can be easily moved linearly and positioned.

Advantages

• Easy and safe die change
• Hydraulic lifting of the complete bar
• Very high loads
• Lengths up to 2500 mm in 250 mm long segments
• The hydraulic supply is protected inside the slot base
• Easy cleaning of the bars and rollers by open design
• Low weight (version in aluminium)
