Series
B1.4301

Threaded-body cylinders

single acting with spring return, with wiper
short version, max. operating pressure 500 bar
Threaded-body cylinders
Downloads
Catalogue sheet
USESFR
Operating instructions
Request product
Check Pricing and Availability
Go to Carrlane.com
Information Series
Description

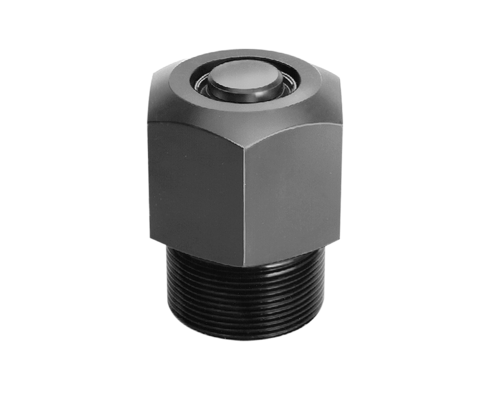

B1.4301 Threaded-Body Cylinder

These clamping cylinders may be threaded directly into tapped holes of the fixture. These compact devices can be used to great advantage in fixtures where space is at a premium. Hydraulic fluid is supplied through passages drilled into the fixture body, thus eliminating hydraulic hoses and threaded fittings. The built-in spring returns the piston when hydraulic pressure is released.

Error loading CAD data. Please check your internet connection and try again.
Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
