Series
B1.464
Threaded-body cylinders
short stroke,
single acting with spring return, max. operating pressure 500 bar
single acting with spring return, max. operating pressure 500 bar
Information Series
Description

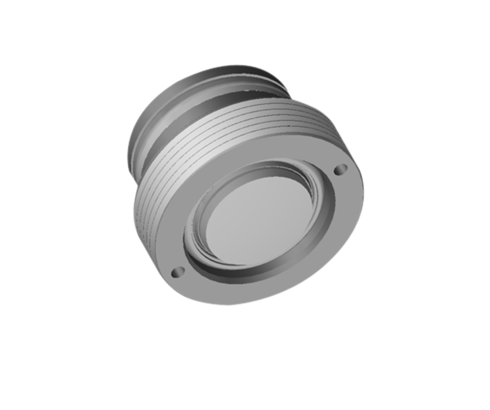

B 1.464 Threaded-Body Cylinder
These short threaded-body cylinders are particularly suitable for recessed installation in clamping bars. Oil supply is made through drilled channels.
The plunger construction combined with the wiper avoids penetration of contamination and liquids into the spring area.
