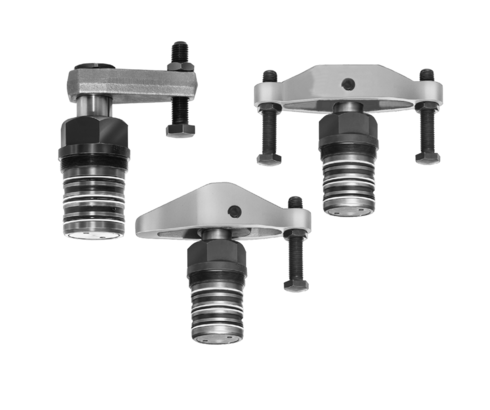

Threaded-body swing clamps

with overload protection device
single and double acting, max. operating pressure 500 bar

Downloads

Catalogue sheet

US ES FR

Operating instructions

Information Series

Description

B 1.892 Swing Clamps with Overload Protection Device

Hydraulic swing clamps are used for clamping of workpieces when it is essential to keep the clamping area free of straps and clamping components for unrestriced workpiece loading and unloading.

Clamping arms and strap type clamps are fastened to the piston rod by means of a taper shank and socket connection.

This hydraulic clamping element is a pull-type cylinder where a part of the total stroke is used to swing the piston.

Overload protection devise
An integrated mechanical overload protection device prevents damage to the swing mechanism when striking an object within the 90° rotation, clamping or unclamping alike, or in case of incorrect mounting of the clamping arm.

Accessories (23)

Number

Item no.	CAD data	Description
Item no. 0131524	CAD data /	Description Seal kit, external seals for 1883-1X2/-2X2, 1893-XX1(M)/-XX2(M) and 1953-001 as per data sheet S0.001
Item no. 0131526	CAD data /	Description Seal kit, external seals for 1885-1X2/-2X2, 1895-XX1(M)/-XX2(M), 1895-XX1VXX35 and 1955-001 as per data sheet S0.001
Item no. 0131528	CAD data /	Description Seal kit, external seals for 1887-1X2/-2X2, 1897-XX1(M)/-XX2(M), 1897-XX1VXX35 and 1957-001 as per data sheet S0.001

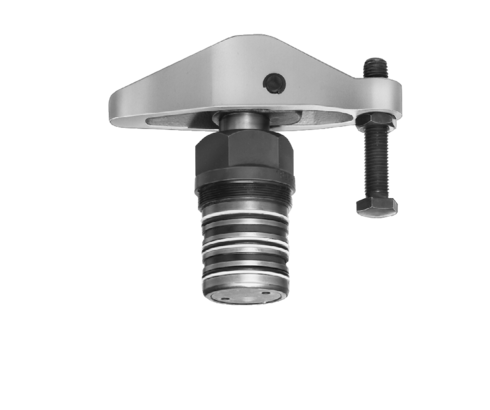

Item no. 0354000	CAD data	Description Clamping strap assembly, complete for 18X3-XXX with carrier, material: GGG-40 max. 500 bar, as per data sheet B1.880

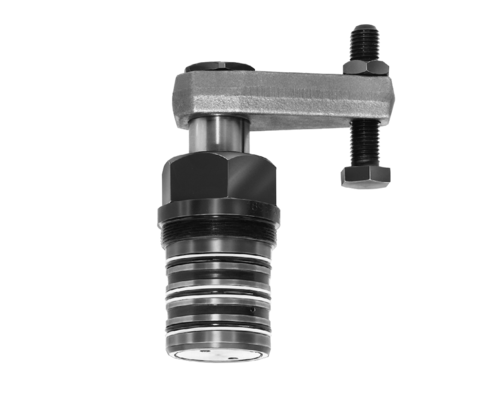

Item no. 0354001	CAD data	Description Clamping arm, complete for 18X3-XXX with thread, material: 42CrMo4 max. 200 bar, as per data sheet B1.880
Item no. 0354002	CAD data	Description Clamping strap assembly, complete for 18X5-XXX with carrier, material: GGG-40 max. 500 bar, as per data sheet B1.880
Item no. 0354003	CAD data	Description Clamping arm, complete for 18X5-XXX with thread, material: 42CrMo4 max. 200 bar, as per data sheet B1.880
Item no. 0354005	CAD data	Description Clamping arm, complete for 18X7-XXX with thread, material: 42CrMo4 max. 200 bar, as per data sheet B1.880

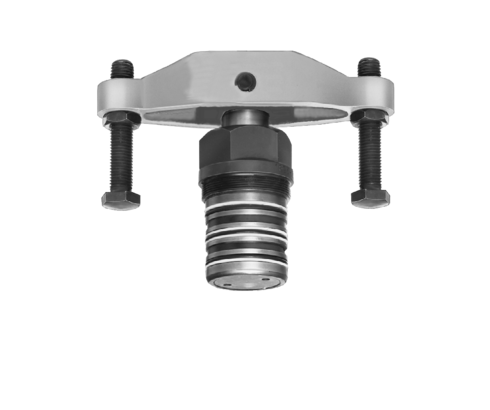

Item no. 0354131	CAD data	Description Double clamping arm assembly, complete for 18X3-XXX with carrier, material: GGG-40 max. 500 bar, as per data sheet B1.880
Item no. 0354132	CAD data	Description Double clamping arm assembly, complete for 18X5-XXX with carrier, material: GGG-40 max. 500 bar, as per data sheet B1.880
