Threaded-Body Universal Cylinder

single and double acting, max. operating pressure 500 bar

Downloads

Catalogue sheet

US ES FR

Operating instructions

Request product

Check Pricing and Availability

Go to Carrlane.com

Information Series

Description

B1.309 Threaded-Body Universal Cylinders

The threaded-body universal cylinders are delivered with the same piston diameters and strokes as the well-proven block cylinders. Hydraulic connection is exclusively effected at the cylinder bottom by hydraulic tubes or hoses. Sealing of the case-hardened piston rod is made by a tandem sealing with minimum leakage and a wiper.

The threaded-body universal cylinders can be used as clamping cylinders for workpiece clamping as well as for general motion tasks. For temperatures exceeding
100° C a version with FKM seals is available. Fixing is made in cross holes with 2 lock nuts or in threaded holes with 1 lock nut. The lock nuts allow exact positioning of the cylinder in axial direction.

Accessories (7)

Number

Item no.	CAD data	Description
Item no. 3300324	CAD data	Description Flange nut DIN 1804 M48 x 1,5 mm see page B1.309
Item no. 3300326	CAD data	Description Flange nut DIN 1804 M45 x 1,5 mm see page B1.309
Item no. 3300412	CAD data	Description Flange nut DIN 1804 M90 x 2 mm see page B1.309
Item no. 3300673	CAD data	Description Flange nut DIN 1804 M75 x 1,5 mm see page B1.309
Item no. 3300699	CAD data	Description Flange nut DIN 1804 M40 x 1,5 mm see page B1.309
Item no. 3300992	CAD data	Description Flange nut DIN 1804 M55 x 1,5 mm see page B1.309
Item no. 3301661	CAD data /	Description Flange nut DIN 1804 M65 X 1.5 mm see page B1.309

Application examples

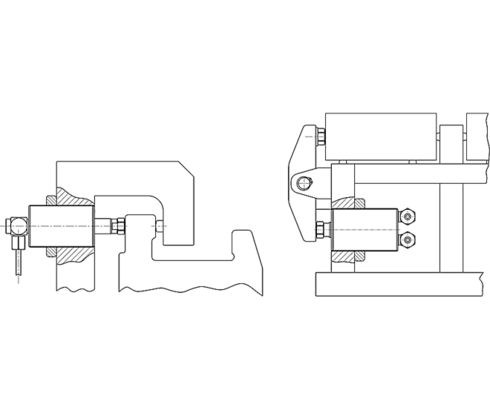

Application example 1
