Wedge Clamps for Flat Clamping Edge

single acting, clamping with spring force and hydraulic unclamping,
retention force 25 up to 120 kN, with and without position monitoring

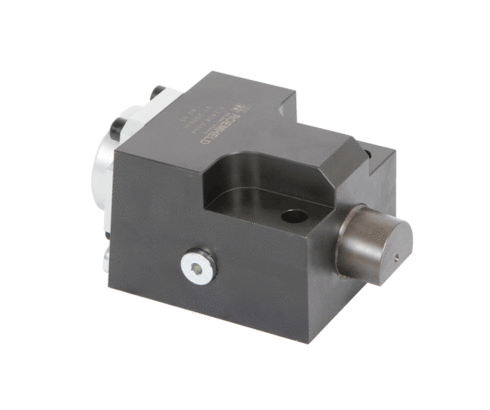

The wedge clamping elements consist of a guide housing with one-piece clamping bolt.
Clamping cycle: the clamping bolt which is inclined by 6° performs an idle stroke and simultaneously a clamping stroke. The clamping bolt is lowered axially onto the clamping edge. The 6° angle, the spring force in the clamping bolt and the frictional engagement at the clamping point create a self-locking connection. The wedge clamping element should preferably be used with position monitoring.

Advantages

• safe clamping of dies with straight clamping edge

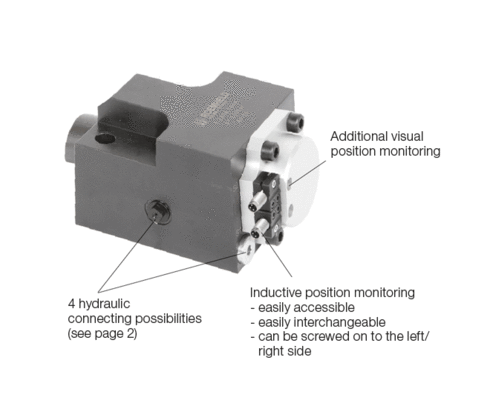

• high operating safety due to clamping by spring force, inductive and visual position monitoring
• position monitoring on the left or right side
• clamping element with self-locking
  dimensions in accordance with Euromap guidelines
• no clamping edge bevels are required
• variable clamping edge heights (spacer plates)
• tolerance of clamping edge height ± 0.5 mm
• the pressure of the machine hydraulics of 160 bar is sufficient for unclamping
• very sturdy and compact design
• housing with stainless coating
• flexible connecting possibilities by 4 hydraulic Connections

Applications

• safe clamping of dies with straight clamping edge
• for clamping of dies in injection moulding machines
• for clamping of dies on press bed and ram
