Swing Clamp with Fail-Safe Function

Top flange, reinforced swing mechanism
position monitoring optional
double acting, max. operating pressure 250 bar

Downloads

Catalogue sheet

US ES FR

Operating instructions

Information Series

Description

B 1.8805 Swing clamps with Fail-Safe Function

Fail-safe function

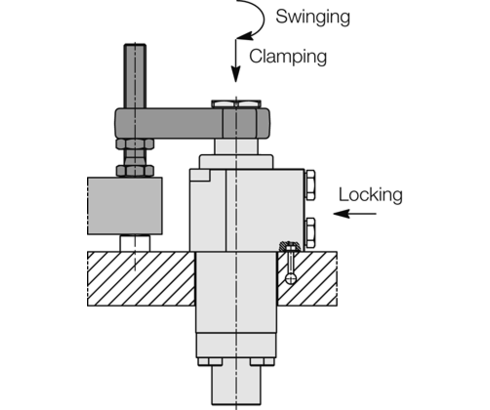

The full clamping force is maintained both in the event of pressure drop and a complete pressure loss. This is achieved by fail-safe clamping of the piston rod via a double-acting wedge-shaped piston, which is controlled separately.
Clamping:
1. Swinging and clamping
2. Locking
Unclamping:
1. Release locking
2. Unclamping and retracting
Conditions: Before depressurising, the locking pressure must be available at least for 3 seconds.

Accessories (12)

Number

Item no.	CAD data	Description
Item no. 0341100	CAD data /	Description Metallic wiper, complete for rod diameter 32 mm as per data sheet B1.852
Item no. 0341101	CAD data /	Description Metallic wiper, complete for series 1847 as per data sheet B1.853
Item no. 0353808	CAD data	Description Pneumatic position monitoring, complete for 1895-XXX-VMX35 as per data sheet B1.8801
Item no. 0353809	CAD data	Description Pneumatic position monitoring, complete for 1896-XXX-VMX36 as per data sheet B1.8801
Item no. 0353811	CAD data	Description Electrical position monitoring with standard switch and angle plug for 1896/1897-XXX-VMX36/38 as per data sheet B1.8801
Item no. 0353813	CAD data	Description Electrical position monitoring without switch for 1896/1897-XXX-VMX36/38 as per data sheet B1.8801
Item no. 0353814	CAD data	Description Electrical position monitoring with standard switch and angle plug for 1895-XXX-VMX35 as per data sheet B1.8801
Item no. 0353815	CAD data	Description Electrical position monitoring without switch for 1895-XXX-VMX35 as per data sheet B1.8801
Item no. 3000343	CAD data	Description O-ring 8 x 1.5 mm, NBR as per data sheet B1.5091
Item no. 3300821	CAD data	Description Screw plug VSD G1/4 A max. 400 bar, as per data sheet F9.300
