Flat clamps

with optional position monitoring,
double acting, max. operating pressure 500 bar

Downloads

Catalogue sheet

US ES FR

Operating instructions

Request product

Check Pricing and Availability

Go to Carrlane.com

Information Series

Description

B 1.8231 Flat clamp

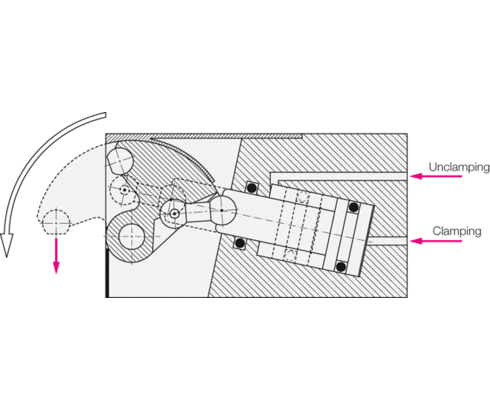

The flat clamp is a double-acting hydraulic clamping element where the piston acts via a con-rod onto a clamping lever. In unclamped position, the clamping lever is completely retracted and the workpieces can easily be inserted from above.
A clamping recess which is larger than the clamping lever is sufficient as clamping point.
The element compensates transverse forces at the clamping point.
The clamping forces are introduced vertically to the base at the clamping height „h3“, therefore introducing no additional turning moments.

Accessories (4)

Number

Item no.	CAD data	Description
Item no. 3610264	CAD data	Description Screw plug G1/4 SW 19 x 8 mm high max. 500 bar, as per data sheet F9.300
Item no. 3829099	CAD data	Description Connecting cable with pnp right angle plug M8 with 2 LED, cable length 5m as per data sheet G2.140
Item no. 3829263	CAD data	Description Inductive proximity switch M8x1 mm type B, compact as per data sheet B1.552
Item no. 9210132	CAD data	Description Plug-type connector ND5 - Ø10 x 14 mm short version, with FKM seals max. 500 bar, as per data sheet F9.300

Application examples

Application example 1

Flat clamp B1.8231
