Double-T Clamping Bars

Preferably for use in the press ram, but also suitable for the press bed.

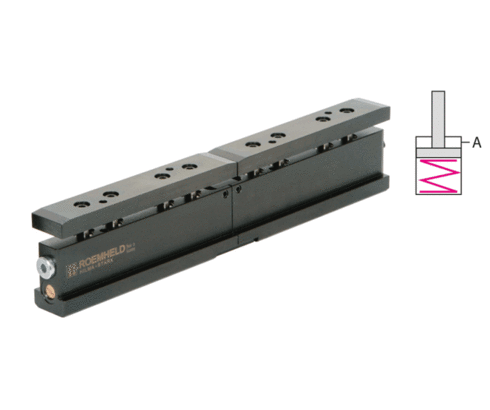

The double-T clamping bar is insertion into the T-slots of the press ram or the press bed in any desired position. The bar is manually secured in position with locking screws in the T-slot. The double-T design requires T-slots in the die and in the press ram or press bed.
The clamping force is generated by applying hydraulic pressure to the pistons, and unclamping is carried out mechanically by spring return.

Applications

For clamping of dies on the press bed and press ram in confined space.

Special features

• max. operating pressure 400 bar, thus no low-pressure circuit required
• the complete clamping surface can be used
• no collision edges
• easy and quick retrofit
• ideal, uniform force transmission

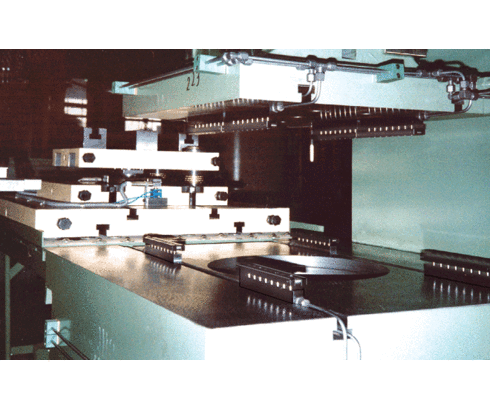

Double-T clamping bar on press bed and ram
