H4.305

Concentric positioning and clamping elements

2 and 3-point positioning
hydraulically operated
double acting
max. operating pressure 250 bar
Concentric positioning and clamping elements
Downloads
Catalogue sheet
USESFRPL
Operating instructions
Request product
Check Pricing and Availability
Go to Carrlane.com
Information Series
Description

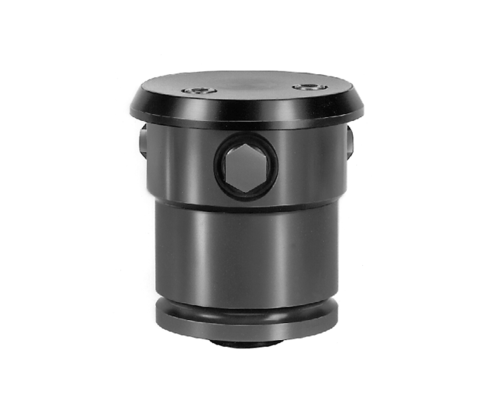

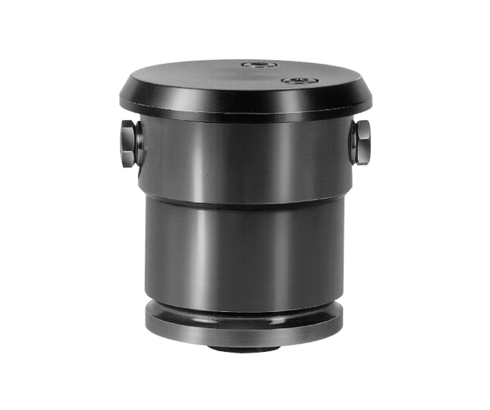

H 4.305 Concentric positioning and clamping elements

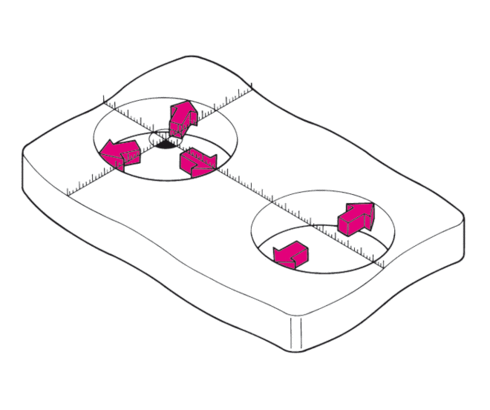

Workpieces with cast or machined bores, reliefs or break-outs, can be easily loaded to the fixture with the concentric positioning and clamping elements and concentrically clamped or positioned for machining. Overtolerance conditions can be avoided and clamping tasks can be completely solved by an ingenious combination of 2 and 3-point elements.

Various mounting and connecting possibilities extend the use for multiple applications. Different sizes and correspondingly adapted contact bolts allow exact adaptation to the required clamping diameter.
