Series
B1.552

Block cylinders

double acting with extended piston rod for position monitoring
max. operating pressure 500 bar
Block cylinders
Downloads
Catalogue sheet
USESFR
Operating instructions
Information Series
Description
B 1.552 Block Cylinders double acting, with extended piston rod for position monitoring

Block cylinders with extended piston rods are used if one or several piston positions have to be controlled.

Especially if:

  • Standard inductive proximity switches should be used
  • The piston positions have to be adjusted on the spot
  • Control has to be effected at the cylinder bottom due to space restrictions

The piston is equipped with a rod of diameter 10 mm that protrudes at the cylinder bottom. At this rod the customer can fix a control cam that is used to operate any limit switch or sensor.
As an accessory a complete position monitoring system is available. This unit contains a control cam as well as two inductive proximitiy switches. The switches can be displaced in the housing. The housing will be screwed on at the cylinder bottom.

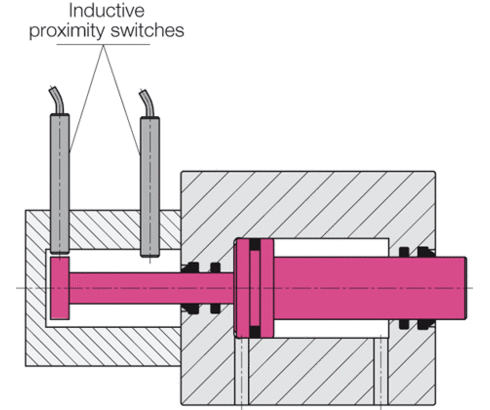

stroke end control with inductive proximity switches
stroke end control with inductive proximity switches
Accessories (16)
Item no. CAD data Description
Item no.
0382300
CAD data
Description
Position monitoring type A, standard with 2 proximity switches for block cylinders up to 30 mm stroke as per data sheet B1.552
Item no.
0382301
CAD data
Description
Position monitoring type B, compact with 2 proximity switches for block cylinders up to 30 mm stroke as per data sheet B1.552
Item no.
0382302
CAD data
Description
Position monitoring type C for high ambient temperature with 2 proximity switches for block cylinders up to 30 mm stroke as per data sheet B1.552
Item no.
0382303
CAD data
Description
Position monitoring without proximity switches for block cylinders up to 30 mm stroke as per data sheet B1.552
Item no.
0382310
CAD data
Description
Position monitoring type A, standard with 2 proximity switches for block cylinders up to 50 mm stroke as per data sheet B1.552
Item no.
0382311
CAD data
Description
Position monitoring type B, compact with 2 proximity switches for block cylinders up to 50 mm stroke as per data sheet B1.552
Item no.
0382312
CAD data
Description
Position monitoring type C for high ambient temperature with 2 proximity switches for block cylinders up to 50 mm stroke as per data sheet B1.552
Item no.
0382313
CAD data
Description
Position monitoring without proximity switches for block cylinders up to 50 mm stroke as per data sheet B1.552
Item no.
3000275
CAD data
/
Description
O-ring 8 x 1.5 mm, FKM as per data sheet B1.5091
Item no.
3001077
CAD data
Description
O-ring 7 x 1.5 mm, FKM as per data sheet B1.5091
Error loading CAD data. Please check your internet connection and try again.
Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
