Bore clamp
double acting, for bore hole diameter 7.8 - 17.7 mm
max. operating pressure 250 bar
The bore clamp is a double-acting pull-type cylinder. An exchangeable clamping bushing is fixed to the piston.
The four segments of the clamping bushing are radially expanded with spring force by a pyramid-shaped clamping bolt. Thus the expansion force is always the same and independent of the hydraulic clamping pressure.
The workpiece is also held without hydraulics by means of the expanded clamping bushing. Both pull-down of the workpiece and unclamping of the clamping bushing are hydraulically controlled.
Connecting the positive air pressure protection, the clamping bushing is protected against swarf and coolants.
In the hardened support surface for the workpiece there is a bore hole for the pneumatic seat check.
| Item no. | CAD data | Description |
|---|---|---|
|
Item no.
|
Description
Clamping set for bore clamps
size 1, Ø 9.8 - 10.2 mm
for bore clamp 4318-1X0D
as per data sheet B1.4841
|
|
|
Item no.
|
Description
Clamping set for bore clamps
size 1, Ø 10.3 - 11.2 mm
for bore clamp 4318-1X0E
as per data sheet B1.4841
|
|
|
Item no.
|
Description
Screw tools for threaded bushing
for bore clamps size 1
as per data sheet B1.4841
|
|
|
Item no.
|
Description
Screw tools for threaded bushing
for bore clamps size 2
as per data sheet B1.4841
|
|
|
Item no.
|
Description
O-ring 3.68 x 1.78 mm - FKM
as per data sheet B1.4842
|
|
|
Item no.
|
Description
O-ring 3.68 x 1.78 mm - NBR
as per data sheet B1.4842
|

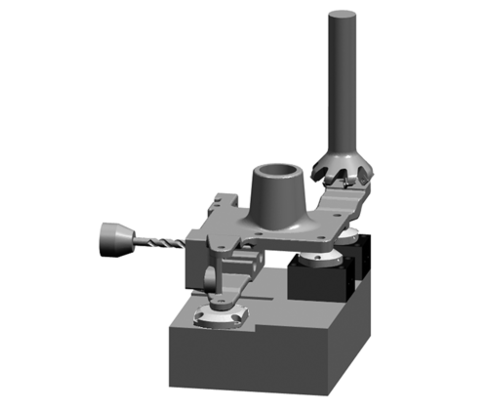

Machining of an oil sump from 5 sides
