Series
B1.480

Hydraulic threaded-body clamping modules

pull-type, single and double acting
with protection against torsion, max. operating pressure 500 bar
Hydraulic threaded-body clamping modules
Downloads
Catalogue sheet
USESFR
Operating instructions
ENESFR
Information Series
Description

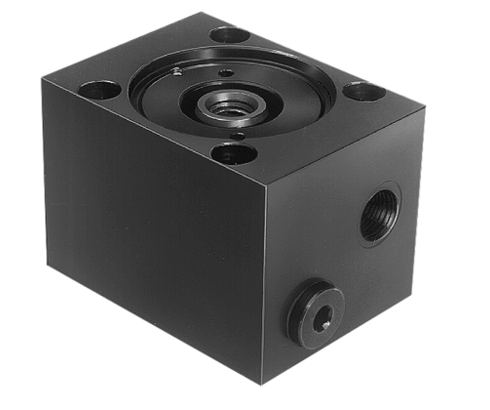

B 1.480 Hydraulic threaded-body clamping module

The hydraulic threaded-body clamping module pull-type was developed for screwing in into:

  • Standardized housings
  • Fixture bodies or manifold blocks
  • Fixture base plates or intermediate plates for pallets or machine tool tables
Application examples

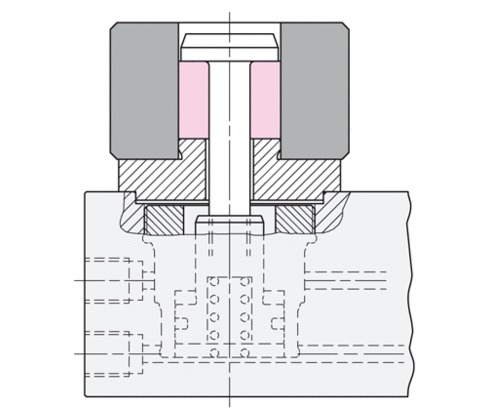

Application example 1

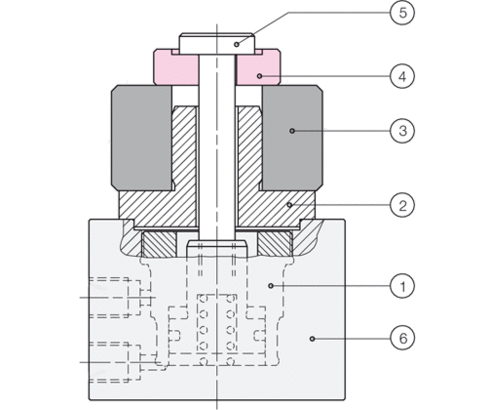

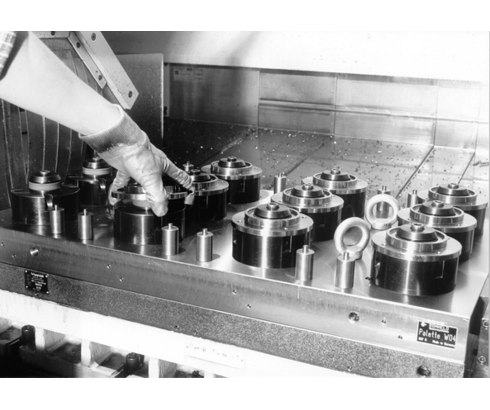

Installation of hydraulic clamping modules in the base plate of a multiple clamping fixture

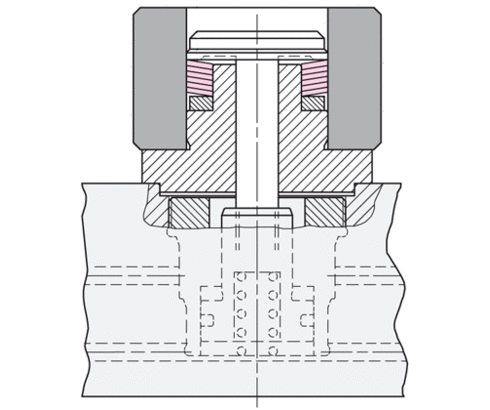

Transmission of the clamping force is made by an elastomer spring element
Ø 50 x Ø 17 x 32 mm high.
The workpieces are centered by the shoulder at the flange. In such an arrangement for clamping neither a wrench is required nor a C-washer has to be handled.
